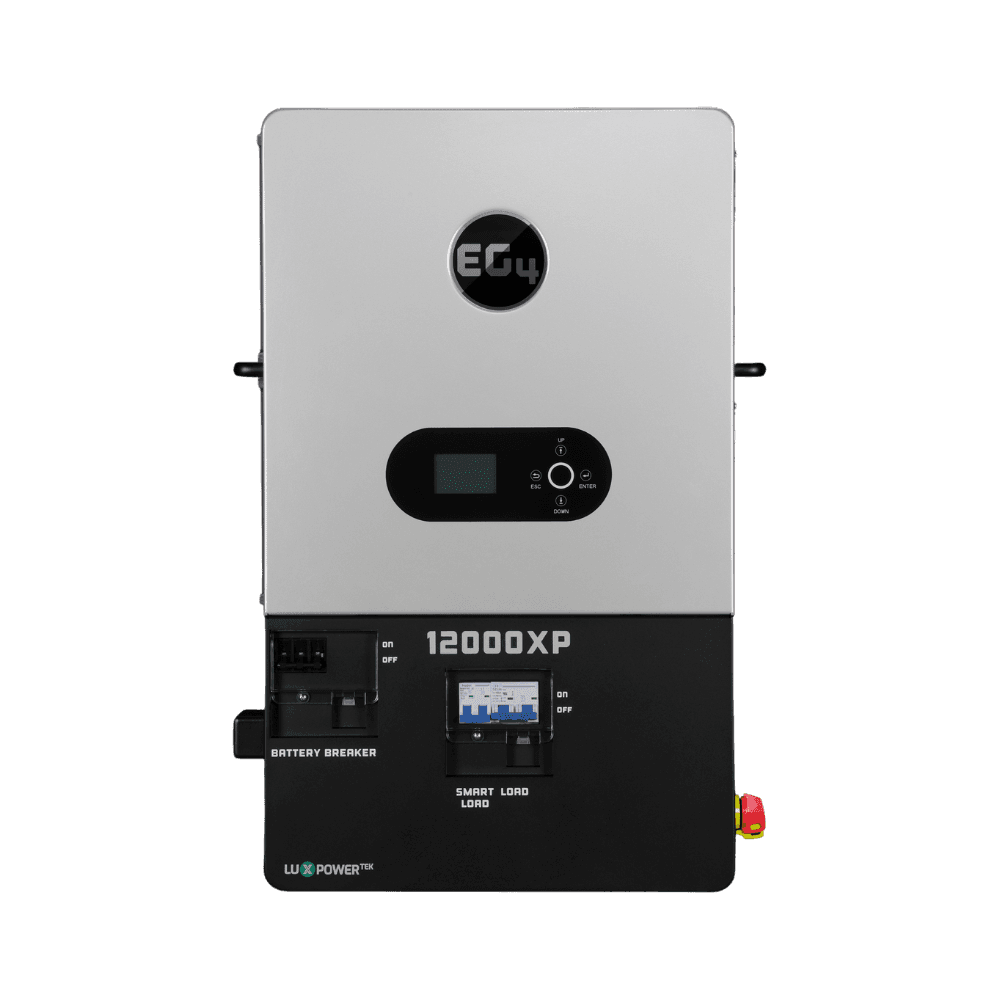

<h2 style="white-space:pre-line">EG4® 12000XP</h2>
All-In-One Off-Grid Inverter
The EG4® 12000XP is a 12 kW, 120/240 VAC split-phase, all-in-one, off-grid, sine wave inverter with grid charge capability designed for the residential and small commercial markets. With its impressive power capacity and advanced functionality, the 12000XP delivers exceptional value and
<ul>
<li>can receive 24 kW of DC(STC) solar PV on two 35 Amp MPPTs</li>
<li>generate 12kW of power and feed through 24kW (100 Amps) of utility - or 90 Amps of generator power</li>
<li>has full generator support with a 90 Amp dedicated generator port, 2-wire start/stop auto-start and full-featured generator support software.</li>
<li>a novel programmable SmartPort that supports either smart load control or AC coupled input up to 90 Amps.</li>
<li>allows up to 6 units to be paralleled, providing a combined output of up to 72kW.</li>
<li>equipped with two MPPTs with two parallel inputs each, a programmable AC couple/smart load port, and a dedicated generator port. It can operate entirely off-grid or with grid input, ensuring reliable operation during power outages.</li>
<li>has a 100 Amp bypass to enable smooth transitions between power sources, ensuring continuous, uninterrupted operation.</li>
</ul>
Specifications
24kW usable PV output (up to a recommended 28kW PV design) 12kW max to each of Loads and Batteries MPPTs: 35A/35A, gives flexibility of 2 strings per input. Max generator input: 63A Max grid passthrough: 100A (AC Grid output 50A @ 240VAC) EG4 5-year warranty
